Smart Ai Driven
Surveillance Solution
For The Modern World

Designed for Smart city, Border security, coastal surveillance, marine security,
Airport & Sea ports, forest fire detection, EOS systems etc.

Know More →

Welcome To XCONNECT

XCONNECT, has rapidly grown to become a leading provider of specialized surveillance cameras and security platforms across Asia. With a strong commitment to research, development, and innovation, XCONNECT focuses on delivering cutting-edge intelligent video products, particularly in Dual Spectrum Long Range Night Vision camera solutions, Body Worn Cameras, and AI-powered surveillance technologies. XCONNECT continues to lead the way in transforming the surveillance landscape with its advanced and reliable solutions.

XCONNECT is a forerunner in the security technology industry, delivering advanced products and solutions for a wide range of surveillance and security needs.

Speed Dome Cameras and PTZ platforms

Long Range Night vision Laser Cameras

Dual Spectrum Thermal Imaging Solutions

Electro Optical System (EOS)

AI Networks Cameras – Dome and Bullet

Marine & Explosion Proof Surveillance solutions

Extreme Night vision Camera solutions

Fiber Optic Transmission & Network switches

Wireless Video Transmission Solutions

Video Display Solutions

Network Camera Solutions

Network Camera

2MP
4MP
8MP
  • High-resolution digital cameras
  • IP-based connectivity
  • Remote monitoring capability

Speed Dome Camera

  • 360° continuous rotation
  • High-speed PTZ operation
  • Auto-tracking capability

Long Range Laser Nightvision

  • Laser illumination up to 500m
  • Thermal imaging options
  • High-resolution day/night operation

Thermal & Hybrid Solutions

  • Dual-spectrum technology
  • Heat signature detection
  • Low-light performance

Extreme Night Vision

  • Starlight sensor technology
  • 0.0001 lux sensitivity
  • Color night vision

Electro Optic Solution

  • Advanced optical systems
  • Multi-sensor configurations
  • Long-range surveillance

DMV

  • In-vehicle recording systems
  • Automatic incident recording
  • GPS tracking integration

Marine & Explosion Proof

  • ATEX certified housings
  • Corrosion-resistant materials
  • Hazardous area compliance

Fiber Optic

  • Long-distance transmission
  • EMI/RFI immune
  • High-bandwidth capacity

WIRELESS Transmission

  • Point-to-point solutions
  • Mesh network capable
  • License-free frequencies

Video Display Solutions

  • Video wall configurations
  • 4K/UHD monitors
  • Control room integration

Body Worn Camera - BWC

  • Lightweight rugged design
  • 1080p/60fps recording
  • Pre-event buffering

Network Video Recorder - NVR

PBL2MDF

  • 2MP Outdoor Infrared Fixed Dome
  • 1/2.8" CMOS sensor
  • 50m IR distance

PBL2MBF

  • 2MP Outdoor Infrared Fixed Bullet
  • 1/2.8" CMOS sensor
  • 50m IR distance

PBL2MDZ

  • 2MP Outdoor Infrared Vertical Dome
  • 2.7-13.5mm Motorized zoom
  • 50m IR distance
×

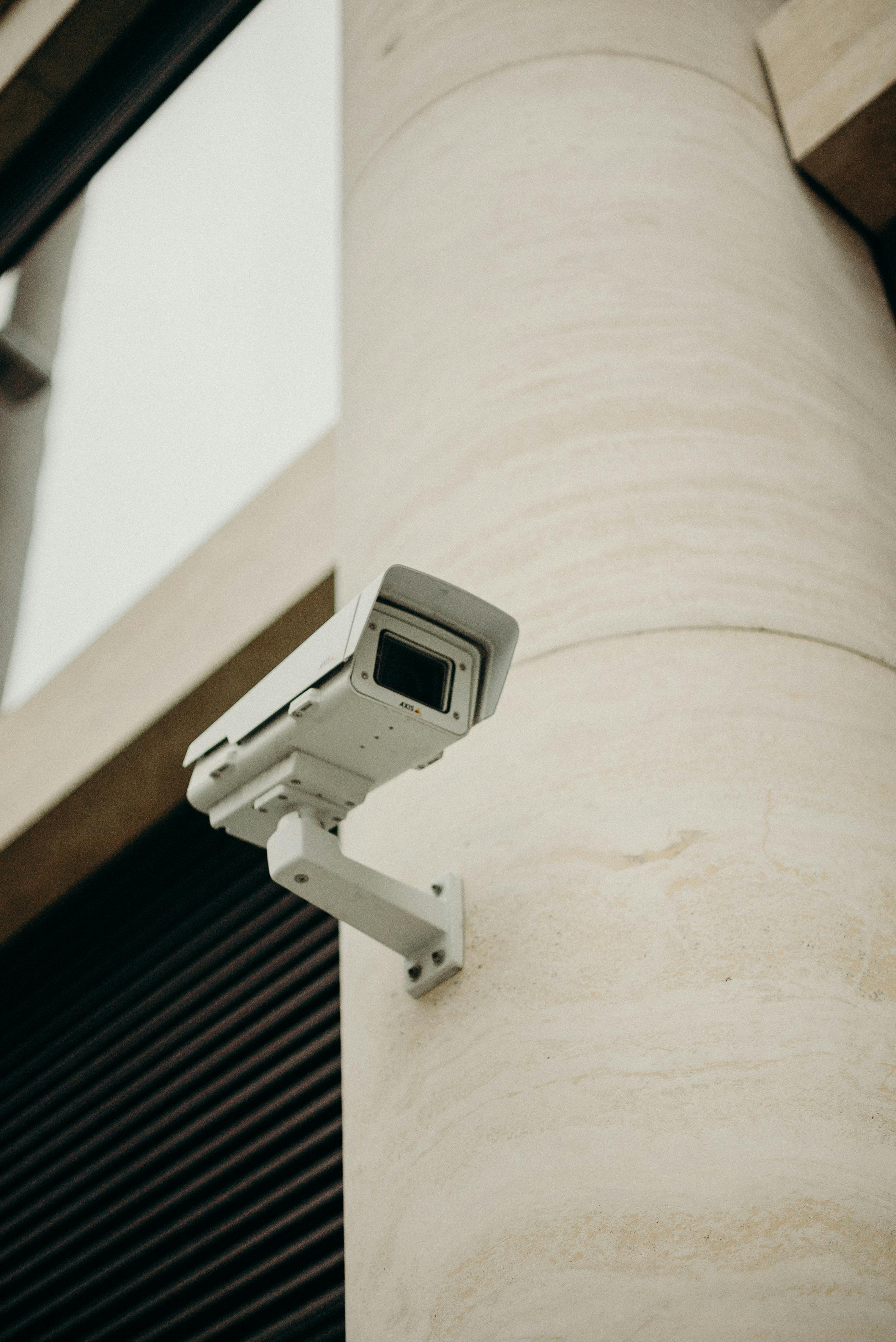

Network Camera

High-resolution IP cameras for professional surveillance

Key Features

  • High-resolution digital cameras (2MP, 4MP, 8MP options)
  • IP-based connectivity for network integration
  • Remote monitoring capability from any device
  • PoE (Power over Ethernet) support for simplified installation
  • Weatherproof designs available for outdoor use
  • Advanced H.265 compression for efficient storage
  • Wide dynamic range for challenging lighting
  • Smart IR for optimized night vision

Technical Specifications

Sensor Type 1/2.8" Progressive Scan CMOS
Resolution Up to 3840×2160 (8MP)
Lens Options Fixed: 2.8mm, 3.6mm, 6mm; Varifocal: 2.7-13.5mm
IR Distance Up to 50 meters
Weatherproof IP66/IP67 rated
Power Supply PoE (802.3af) or 12VDC
Operating Temp -30°C to 60°C (-22°F to 140°F)
Network Camera
×

Speed Dome Camera

High-performance PTZ cameras for active surveillance

Key Features

  • 360° continuous horizontal rotation
  • High-speed PTZ operation (up to 300°/s)
  • Auto-tracking capability for moving objects
  • Infrared night vision up to 200m
  • Weatherproof housing (IP66 rated)
  • 30x optical zoom for detailed observation
  • Preset positions and patrol routes
  • Smart analytics (intrusion detection, line crossing)

Technical Specifications

Sensor Type 1/2.8" 4K CMOS
Resolution 3840×2160 @ 30fps
Zoom 30x Optical, 16x Digital
Pan/Tilt 360° continuous pan, 0-90° tilt
IR Distance Up to 200 meters
Weatherproof IP66 rated, -40°C to 60°C
Power Supply PoE++ (802.3at) or 24VAC
Speed Dome Camera
×

PBL2MDF - 2MP Outdoor Infrared Fixed Dome

Professional-grade fixed dome camera for 24/7 surveillance

Key Features

  • 2MP (1920×1080) high-resolution imaging
  • 1/2.8" progressive scan CMOS sensor
  • Smart IR illumination up to 50m
  • True WDR (120dB) for challenging lighting
  • IP66 weatherproof and IK10 vandal-resistant
  • 3D noise reduction for clear images
  • H.265+ compression for efficient storage
  • Built-in microphone for audio recording

Detailed Specifications

Model PBL2MDF
Resolution 1920×1080 @ 30fps
Lens 2.8mm fixed (92° FOV)
Sensor 1/2.8" CMOS
IR Distance 50m (164ft)
WDR 120dB
Weatherproof IP66, IK10
Operating Temp -30°C to 60°C (-22°F to 140°F)
Power Supply PoE (802.3af) or 12VDC
Dimensions Φ145×100.5mm
Weight 850g
PBL2MDF Dome Camera
×

Long Range Laser Nightvision

Extended surveillance capability in complete darkness

Key Features

  • Laser illumination up to 500m (1640ft)
  • Thermal imaging options available
  • High-resolution day/night operation
  • Autofocus capability for sharp imaging
  • Ruggedized outdoor housing (IP68)
  • Advanced target tracking algorithms
  • Integrated heater for extreme cold
  • Remote focus and zoom control

Technical Specifications

Sensor Type 1/1.8" CMOS + Thermal
Resolution 3840×2160 (8MP) + 640×512 thermal
Lens 12.5-750mm (60x optical zoom)
IR Distance Up to 500m with laser illuminator
Detection Range Up to 5km (thermal)
Weatherproof IP68, -40°C to 65°C
Power Supply 24VAC/DC or PoE++

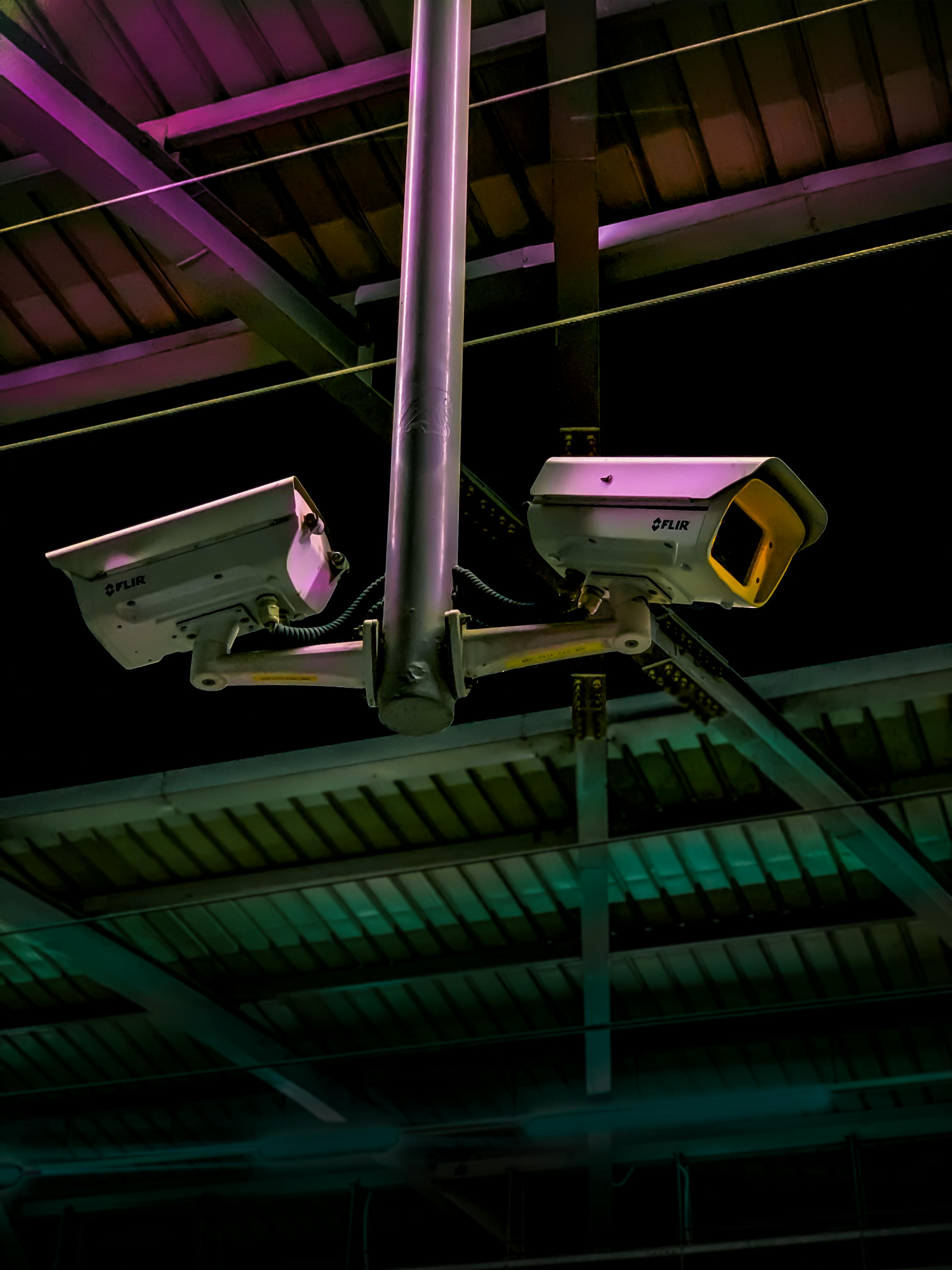

Long Range Nightvision Camera
×

Thermal & Hybrid Solutions

Dual-spectrum surveillance for maximum detection

Key Features

  • Dual-spectrum (visible + thermal) technology
  • Heat signature detection in complete darkness
  • Exceptional low-light performance
  • Perimeter protection solutions
  • AI-powered analytics (intrusion detection)
  • Temperature measurement capability
  • Smoke and fire detection
  • Multi-sensor fusion technology

Technical Specifications

Visible Sensor 1/1.8" 4K CMOS
Thermal Sensor 640×512 uncooled VOx
Thermal Sensitivity <50mK
Lens Options 7.5-300mm (40x) visible + 19/35/50mm thermal
Detection Range Up to 1.8km (human detection)
Temperature Range -20°C to 1500°C (optional)
Weatherproof IP67, -40°C to 70°C
Thermal Hybrid Camera
×

Extreme Night Vision

See in near-total darkness with color imaging

Key Features

  • Starlight sensor technology
  • 0.0001 lux sensitivity (moonlight only)
  • Color night vision capability
  • Wide dynamic range (140dB)
  • Smart IR illumination with auto-adjustment
  • AI-based noise reduction
  • Low-light facial recognition
  • Zero-lux option with IR

Technical Specifications

Sensor Type 1/1.2" STARVIS CMOS
Resolution 4K (3840×2160) @ 30fps
Minimum Illumination 0.0001 lux (color), 0 lux (IR on)
Lens Options Fixed: 2.8/4/6mm, Motorized: 5-50mm
IR Distance Up to 100m (328ft)
WDR 140dB true WDR
Weatherproof IP67, IK10

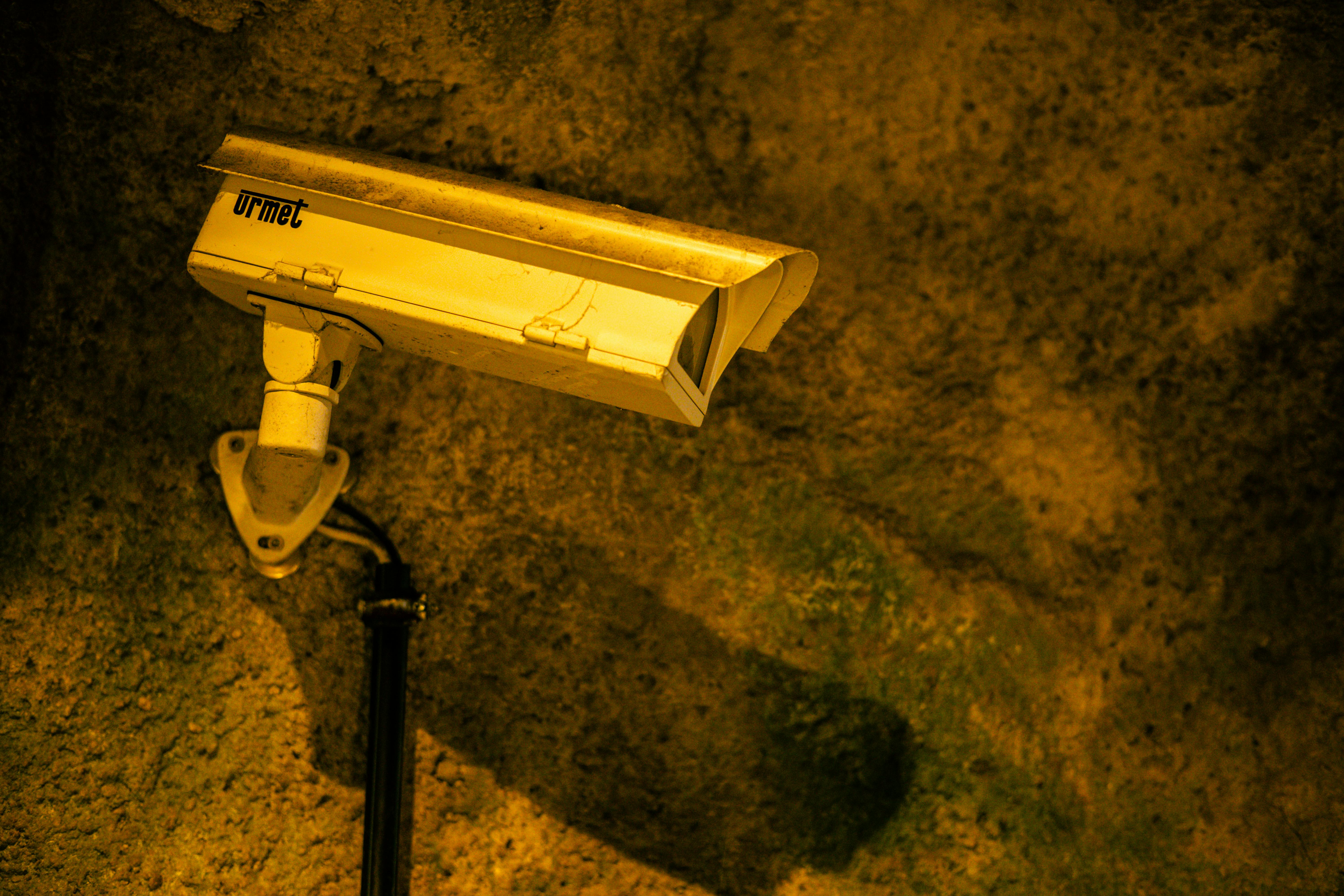

Extreme Night Vision Camera
×

Electro Optic Solution

Advanced surveillance systems for critical applications

Key Features

  • Advanced optical systems with multi-sensor fusion
  • Multi-sensor configurations (visible, thermal, IR)
  • Long-range surveillance (up to 20km)
  • Stabilized platforms for mobile applications
  • Integrated command and control systems
  • Automatic target detection and tracking
  • Geo-referencing and mapping integration
  • Ruggedized for military and marine use

Technical Specifications

Visible Channel 4K UHD with 50x zoom
Thermal Channel 640×512 or 1280×1024
Laser Rangefinder Integrated (up to 20km)
Stabilization 3-axis gyro-stabilized
Pan/Tilt Range 360° continuous, ±90° tilt
Environmental IP68, MIL-STD-810G
Power Supply 24VDC or 110/220VAC
Electro Optic System
×

Digital Mobile Video (DMV)

In-vehicle surveillance and evidence collection

Key Features

  • In-vehicle recording systems for law enforcement
  • Automatic incident recording (pre-event buffering)
  • GPS tracking with mapping integration
  • Wireless data offload (Wi-Fi, 4G/5G)
  • Ruggedized for mobile use (MIL-STD-810G)
  • Multi-camera support (up to 4 channels)
  • Integrated license plate recognition
  • Secure evidence chain of custody

Technical Specifications

Video Inputs 4x 1080p @ 30fps (H.265)
Storage 256GB-2TB SSD (encrypted)
GPS Integrated with 10Hz update
Wireless Wi-Fi 6, 4G/5G optional
Operating Temp -30°C to 70°C
Power Supply 9-36VDC (vehicle power)
Dimensions 200×150×50mm
DMV System
×

Marine & Explosion Proof

Hazardous environment surveillance solutions

Key Features

  • ATEX/IECEx certified explosion-proof housings
  • Corrosion-resistant 316L stainless steel construction
  • Hazardous area compliance (Zone 1, Zone 2)
  • Saltwater protection for marine environments
  • Heavy-duty mounting for high-vibration areas
  • Pressurized enclosure options
  • Intrinsically safe designs available
  • Heated windows for cold environments

Technical Specifications

Certifications ATEX, IECEx, UL, DNV-GL
Housing Material 316L Stainless Steel
Protection Level IP68/IP69K
Temperature Range -40°C to 85°C
Camera Options Fixed, PTZ, Thermal
Explosion Proof Zone 1, Zone 2, Class I Div 1
Weight 5-25kg depending on model
Explosion Proof Camera
×

Fiber Optic Solutions

High-speed, interference-free video transmission

Key Features

  • Long-distance transmission (up to 80km)
  • EMI/RFI immune for industrial environments
  • High-bandwidth capacity for multiple video streams
  • Fiber media converters for copper-to-fiber transition
  • Secure data transmission (tapping detection)
  • Single-mode and multi-mode solutions
  • CWDM/DWDM for fiber multiplexing
  • Fiber optic PTZ control

Technical Specifications

Transmission Distance Up to 80km (single-mode)
Wavelength 1310nm, 1550nm, or CWDM/DWDM
Video Channels 1-64 per fiber (with multiplexing)
Data Rate Up to 10Gbps
Connector Types SC, LC, ST, MTP/MPO
Power Options Local power or PoE fiber media converters
Protocols Ethernet, RS-485, HD-SDI over fiber
Fiber Optic Transmission
×

WIRELESS Transmission

Flexible video transmission without cables

Key Features

  • Point-to-point and point-to-multipoint solutions
  • Mesh network capable for flexible deployment
  • License-free frequencies (2.4GHz, 5GHz, 60GHz)
  • High-throughput video transmission (up to 4K)
  • Military-grade AES-256 encrypted transmission
  • Long-range options (up to 50km line-of-sight)
  • Low-latency for real-time monitoring
  • Solar-powered options available

Technical Specifications

Frequency Bands 2.4GHz, 5GHz, 60GHz, sub-6GHz
Data Rate Up to 1.7Gbps (aggregate)
Range Up to 50km (LOS)
Latency <5ms (point-to-point)>
Encryption AES-256, WPA3
Power Options PoE, 12/24VDC, solar
Weatherproof IP67, -40°C to 70°C
Wireless Transmission System
×

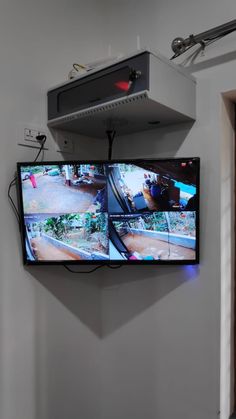

Video Display Solutions

Command center visualization technology

Key Features

  • Video wall configurations (2×2 to 10×10)
  • 4K/UHD monitors with narrow bezels
  • Control room integration solutions
  • Multi-view display processors
  • Touchscreen interfaces for interactive control
  • High-brightness options for daylight viewing
  • Video management system integration
  • Custom layouts and presets

Technical Specifications

Display Types LCD, LED, OLED, Direct View LED
Resolution Up to 8K (7680×4320)
Brightness Up to 2000 nits (outdoor)
Input Capacity Up to 256 video sources
Control Interface Touch, Keyboard, Mobile App
Video Wall Processors Up to 100 output channels
Mounting Options Wall, Ceiling, Floor, Rack
Video Display Wall
×

Body Worn Camera (BWC)

Personal recording devices for law enforcement

Key Features

  • Lightweight rugged design (IP68 rated)
  • 1080p/60fps or 4K/30fps recording
  • Pre-event buffering (30-60 seconds)
  • Evidence management software
  • Secure chain of custody tracking
  • Wi-Fi/4G automatic upload
  • GPS and officer-down alerts
  • Long battery life (12+ hours)

Technical Specifications

Video Resolution 1080p @ 60fps or 4K @ 30fps
Storage 64GB-256GB (encrypted)
Battery Life 12+ hours continuous
Connectivity Wi-Fi, Bluetooth, 4G LTE
GPS Integrated with logging
Durability IP68, MIL-STD-810G
Weight 120-200g
Body Worn Camera
×

PBL2MBF - 2MP Outdoor Infrared Fixed Bullet

Professional bullet camera for outdoor surveillance

Key Features

  • 2MP (1920×1080) high-resolution imaging
  • 1/2.8" progressive scan CMOS sensor
  • Smart IR illumination up to 50m
  • True WDR (120dB) for challenging lighting
  • IK10 vandal-proof rating
  • 3D noise reduction for clear images
  • H.265+ compression for efficient storage
  • IP66 weatherproof housing

Detailed Specifications

Model PBL2MBF
Resolution 1920×1080 @ 30fps
Lens 3.6mm fixed (78° FOV)
Sensor 1/2.8" CMOS
IR Distance 50m (164ft)
WDR 120dB
Protection IP66, IK10
Operating Temp -30°C to 60°C (-22°F to 140°F)
Power Supply PoE (802.3af) or 12VDC
Dimensions Φ95×289mm
Weight 950g
PBL2MBF Bullet Camera
×

PBL2MDZ - 2MP Outdoor Infrared Vertical Dome

Motorized zoom dome camera for flexible surveillance

Key Features

  • 2MP (1920×1080) high-resolution imaging
  • 2.7-13.5mm motorized zoom lens (5x)
  • Smart IR illumination up to 50m
  • True WDR (120dB) for challenging lighting
  • IP67 weatherproof rating
  • 3D noise reduction for clear images
  • H.265+ compression for efficient storage
  • Vertical form factor for wall mounting

Detailed Specifications

Model PBL2MDZ
Resolution 1920×1080 @ 30fps
Lens 2.7-13.5mm motorized (5x optical zoom)
Field of View 96°-32° (horizontal)
IR Distance 50m (164ft)
WDR 120dB
Weatherproof IP67
Operating Temp -30°C to 60°C (-22°F to 140°F)
Power Supply PoE (802.3af) or 24VAC
Dimensions Φ145×100.5mm
Weight 900g
PBL2MDZ Dome Camera

Get In Touch

We'll create high-quality linkable content and build at least 40 high-authority links to each asset, paving the way for you to grow your rankings, improve brand.

Contact Information

We'll create high-quality linkable content and build at least 40 high-authority.

  • 7449867449
    7449867449
  • xconnectworld@gmail.com
  • Banglore, India
Enter 10 digits without spaces or special characters.
